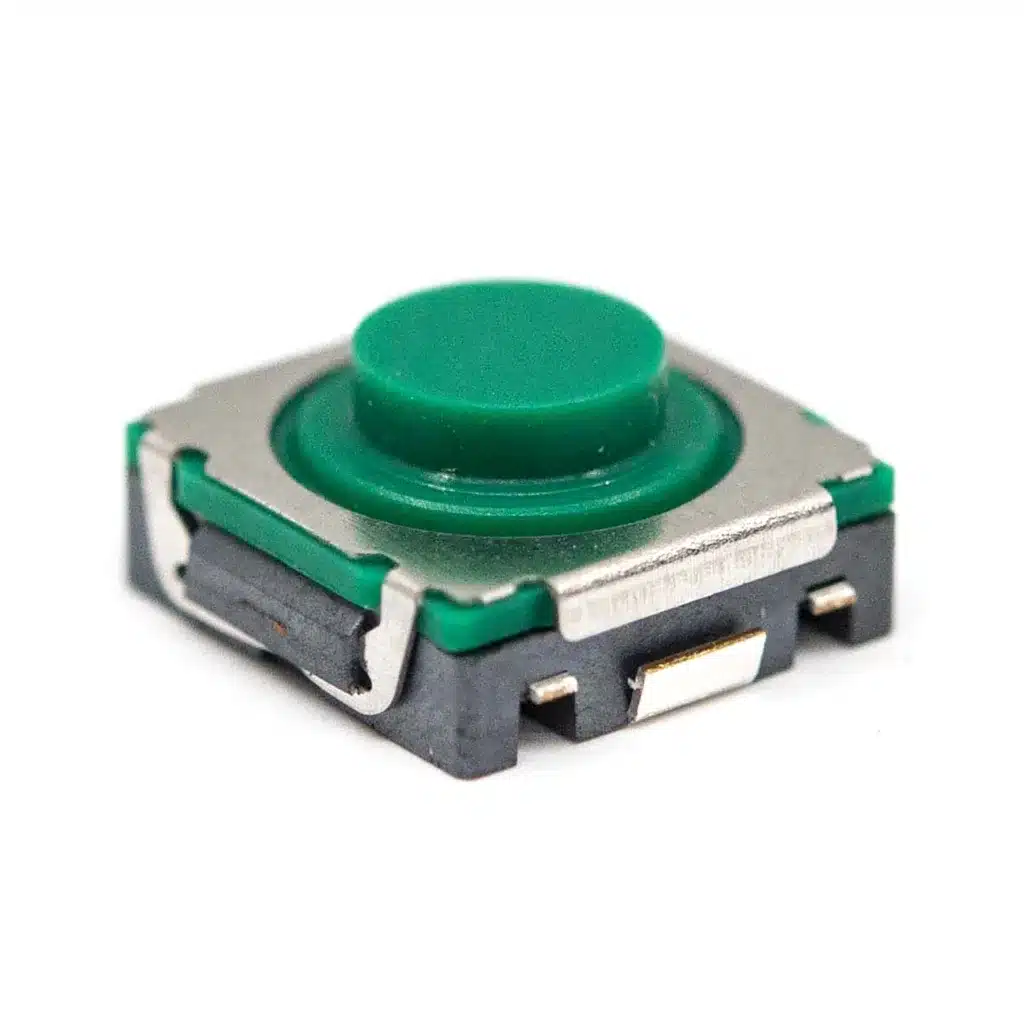

TL9320 Series Sealed, SMT Tactile Switch

TL9320 Series Sealed, SMT Tactile Switch

TL9320 Series: TL9320AF400QG

Categories: TACT

RoHS Compliant REACH Compliant

TL9320 Series Sealed, SMT Tactile Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

TL9320AF400QG

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for TL9320AF400QG

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the TL9320AF400QG from our authorized distributors.

In-Stock Distributors

TACT, 50mA, 16VDC, SPST-NO, Off-(On), Surface Mount, Illuminated


About TL9320 Series

  • IP67
  • Surface mount (SMT) design
  • 8.4mm x 8.4mm
  • 400gf operating force
  • 3.95mm actuator height
  • 500,000 cycle life
  • Silver contact material
  • 0.9mm travel
  • -20°C to 70°C operating temperature
  • 16VDC @ 50mA
  • Tape and reel packaged

Product Specifications

TL9320AF400QG

TACT, 50mA, 16VDC, SPST-NO, Off-(On), Surface Mount, Illuminated

  • Series Name TL9320
  • PackagingTape & Reel
  • Current Rating50mA
  • Voltage Rating16VDC
  • CircuitSPST-NO
  • FunctionOff-(On)
  • Mounting TypeSurface Mount
  • Termination TypeGull Wing
  • Contact MaterialSilver
  • Actuator TypeStandard
  • Actuator Height3.95mm
  • Illumination StyleNon-illuminated
  • Illumination ColorNon-illuminated
  • Ingress ProtectionIP67
  • Operating Force400gf
  • Operating Temperature-20°C to 70°C

Support for TL9320AF400QG

Not the product you are looking for? Configure your product


Related Posts


Where To Buy

With thousands of authorized representatives and distributors around the world, you are sure to find one near you.

Find An Authorized Distributor Buy Online

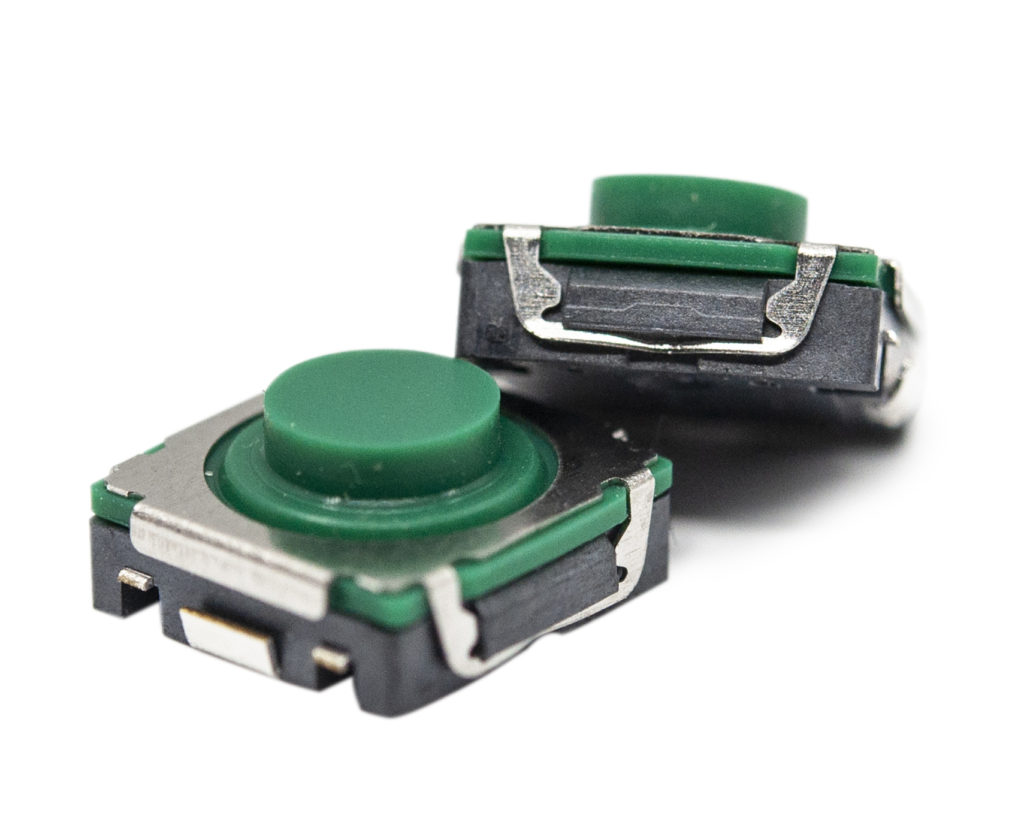

E-switch product photo
