E-Switch products are vital in the security applications market, where they provide reliable, real-time control and monitoring for systems that protect people, property and data. These switches are used in everything from access control and alarm systems to surveillance and perimeter protection.
Switches control camera positioning, zoom and power and can trigger recording based on motion or door activity. They can activate sirens, lights or alerts when a breach or hazard is detected. They provide status feedback to control panels or monitoring centers, ensuring systems are functioning and secure.
Don’t hesitate to contact E-Switch with questions about your next project. Our dedicated customer service representatives, expert engineers and local sales support teams will be with you every step of the way.
Click on the Security applications below to see what E-Switch products were used for each application and what functions they perform.
Usage: Buttons on User Interface
The PV6 was selected because of its IP65 seal rating, dot and ring illumination options, solder lug or wire lead terminals and 16mm panel cutout size.
Usage: Keypad Activation
The TL1030 was utilized because of its SMT design, space-saving 3.5mm x 2.9mm size, four operating force options and robust operating temperature range.
Usage: Selection Switch and Power On/Off Switch
The TL3301 was the perfect tact switch for this application because of its SMT design, 6mm x 6mm size, actuator height and cap options and robust operating temperature range.
Usage: Main On/Off Switch and Secure Keypad
The TL6700 is perfect for public-facing devices because of its IP67 rating, long life expectancy and SMT design with two operating force options.
Usage: On/Off Power Switch and Call Buttons
The PA4 is a durable, robust and economical power rated (16A with UL approval) pushbutton, making it perfect for secure locations. It was full illumination ability, eight actuator marking options and six different termination selections.
Usage: Keypad Activation
The TL3342 was utilized for its SMT design, ultra low profile (1.50mm), five different operating force options and compact 5.2mm x 5.2mm size.

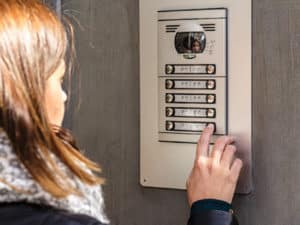

Usage: Call Buttons
The PV3 was utilized for its tamper-proof design and anti-vandal features, including an IP67 rating, multiple body finish options (including brushed or polished stainless steel), illumination abilities and 16mm panel cutout.
Usage: On/Off Power Switches
The RB3 was selected for its electrical ratings (ranging from 16 to 25A with cURus and ENEC approvals), IP67 seal rating, illumination options (including dual illumination) and various housing and actuator marking, color and customization options.
Usage: On/Off Power Switch
The PZ Series was selected because of its momentary pulse function (piezoelectric switch), which guarantees an electrical life of 50 million cycles, IP68 seal rating and the ability to choose between panel cutout sizes of 16mm, 19mm or 22mm.
Usage: On/Off Power Switch, Detect Intrusion and Keypad Activation
The TL6120 offered this application its fully sealed, IP67 rating, SMT design in a compact 7.4mm x 7.4mm size and a long life of up to one million cycles.
Usage: On/Off Power Switch and Volume Control
The TL1030 was utilized for its compact (3.5mm x 2.9mm) SMT design, operating force options and robust operating temperature range.
Usage: Main On/Off Switch, Control Panel Keypad
The TL9100 provided this application with a “soft touch” tactile feel, long travel (1.3mm), an SMT design and compact 6mm x 6mm size.
