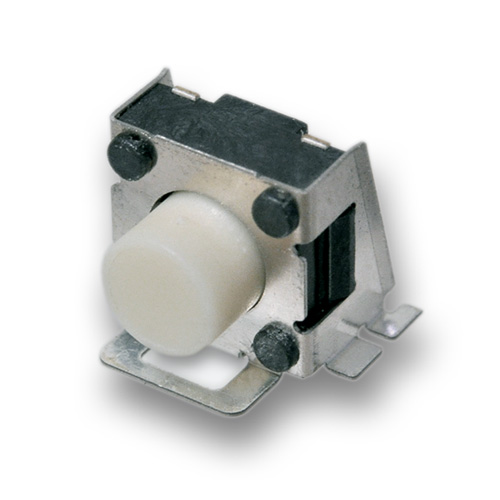

TL3360 Series SMT Right Angle Tactile Switch
Stock Check for TL3360AF185KR
Not the product you are looking for? Configure your product
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Right Angle
About TL3360 Series
- Surface mount, right angle (SMT) design
- 6.5mm x 6.5mm
- 185gf or 260gf
- Multiple actuator height options
- Solder pad option
- Auto placement tab option
- Silver or gold contact material
- 200,000 cycle life
- -25°C to 70°C operating temperature
- 50mA @ 12VDC
- Tape and reel packaged
TL3360 Series Markets
Product Specifications
TL3360AF185KR
TACT, 50mA, 12VDC, SPST-NO, Off-(On), Surface Mount, Right Angle
- Series Name TL3360
- PackagingTape & Reel
- Current Rating50mA
- Voltage Rating12VDC
- CircuitSPST-NO
- FunctionOff-(On)
- Mounting TypeSurface Mount, Right Angle
- Termination TypeGull Wing
- Contact MaterialSilver
- Actuator TypeStandard
- Actuator Height6.67mm
- Illumination StyleNon-illuminated
- Illumination ColorNon-illuminated
- Operating Force185gf
- Operating Temperature-25°C to 70°C
