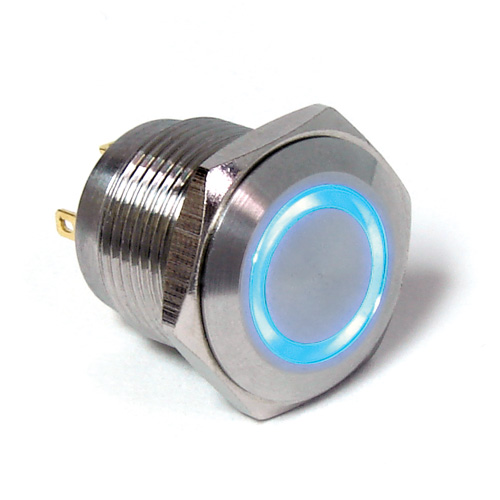

PV6 Series Illuminated Anti-Vandal Switch

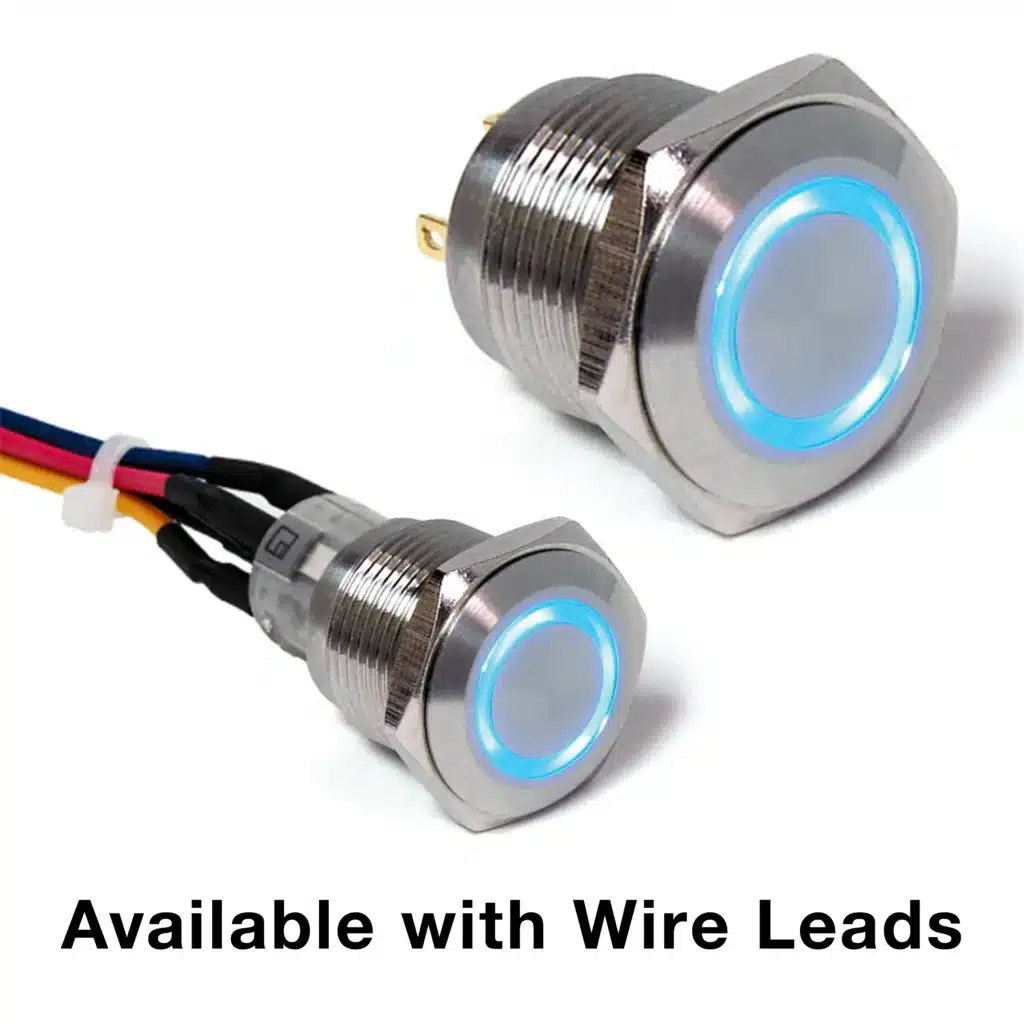

PV6 Series Illuminated Anti-Vandal Switch Wire Leads & Connectors Available

PV6 Series: PV6F24011-2G1

Categories: ANTI-VANDAL

RoHS Compliant REACH Compliant

PV6 Series Illuminated Anti-Vandal Switch

Series Configurator

Use the configurator below to find your specific product or view the most common configurations for this product*.

* If you need further customization, we can help!

Current Configuration:

PV6F24011-2G1

... in stock, available to buy now.

Additional Purchase Options:
Check Distributor Stock Request Sample

Stock Check for PV6F24011-2G1

Not the product you are looking for? Configure your product

In the table below, find in-stock purchase options for the PV6F24011-2G1 from our authorized distributors.

In-Stock Distributors

ANTI-VANDAL, 2A, 48VDC, SPST, Off-(On), Panel Mount, Front, Illuminated

Powered by oemsecrets

About PV6 Series

  • 16mm panel cutout
  • 2A, 48VDC, or pilot indicator option;  IP65 rated
  • SPST circuit; momentary function, or pilot indicator option
  • Solder or wire leads 300mm long termination options
  • High or flat actuator options
  • Nickel, stainless steel, or black anodized finish options
  • Illuminated dot, ring, or power symbol, or non-illuminated options
  • Many LED illumination color options including bi-color and RGB
  • Laser etched power symbol option
  • Silver or gold contact material
  • 50,000 cycles electrical life
  • -40°C to 85°C operating temperature

E-Switch E-Bits: PV6 Series Wire Extension

PV6 Series Markets

Security

Product Specifications

PV6F24011-2G1

ANTI-VANDAL, 2A, 48VDC, SPST, Off-(On), Panel Mount, Front, Illuminated

  • Series Name PV6
  • PackagingBulk
  • Current Rating2A
  • Voltage Rating48VDC
  • CircuitSPST
  • FunctionOff-(On)
  • Mounting TypePanel Mount, Front
  • Termination TypeSolder
  • Contact MaterialSilver
  • Actuator TypeRound, Button, Flush
  • Actuator ColorBlack
  • Illumination StyleDot
  • Illumination ColorLED, Red/Green
  • Illumination Voltage1.8, 2.8VDC
  • Ingress ProtectionIP65
  • Panel Cutout DimensionsCircular - 16mm Dia.
  • Operating Temperature-40°C to 85°C

Support for PV6F24011-2G1
