E-Switch products are a common design choice in the audio/visual (A/V) market, where a strong preference for tactile, reliable control for a wide range of devices and systems is necessary. Switches help manage power, signal routing, user input and system feedback in both consumer and professional A/V equipment.
Switches allow users to power devices on/off, adjust volume, change inputs or select modes with tactile feedback and LED illumination. They’re preferred in many pro-audio settings for their long life and friendly user interfaces. In mixers, amplifiers and AV receivers, switches route audio/video signals between different sources and outputs. Modular switch panels in studios or control rooms allow for flexible configuration of A/V workflows.
Click on the Audio Visual applications below to see what E-Switch products were used for each application and what functions they perform.

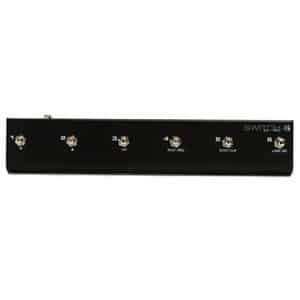

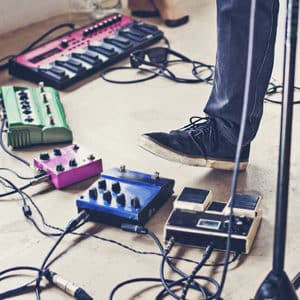

Usage: Controller for Foot Actuation Devices
The FS5700 was utilized as a foot-actuated pushbutton with benefits including a high actuation force, panel mount termination and a robust operating/storage temperature.
Usage: On/Off Power Switch
The R1973 provided UL listed power ratings (up to 9A), a panel mount design and full illumination options.

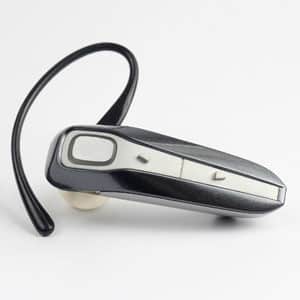

Usage: On/Off Power Switch and Volume Control
The TL3315 was utilized for its SMT design, compact footprint (4.5mm x 4.5mm), low profile and 1,000,000-cycle life.
Usage: On/Off Power and Selector Switches
Call centers utilize a number of different switch types for various pieces of equipment, including high-performance headphones, speakers and computer peripherals. These three different E-Switch pushbuttons can all be found in call centers.
Usage: Selector Switch
The 500A was selected for its subminiature size, epoxy sealed terminals, SMT mounting option and latching function (two or three positions).

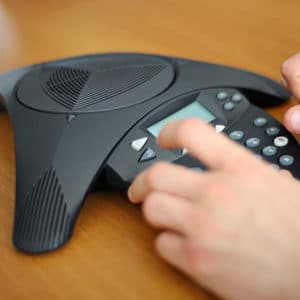

Usage: User Interface Buttons
The TL1105 and TL3301 both offer a compact 6mm x 6mm size, but the TL1105 was used for its through hole right angle mounting while the TL3301 offers a surface mount design.
Usage: On/Off Power Switch
The R1973 provided UL listed power ratings (up to 9A), a panel mount design and full illumination options.
Usage: On/Off Power Switch
The RR1 and RR3112 are both round, illuminated (full or dot), power rocker switches (up to 16A) with panel mount snap-in designs and momentary or latching functionality.
Usage: Control Panel Selections
The PV1 provides an IP65 rating, long life and a flat, high or domed actuator within a 19mm panel cutout.
The RP8600 is sealed to an IP67 rating and has a threaded mount fit for a 16mm panel cutout.
Usage: On/Off Power Switch
The R1973 was selected for its full illumination, marking options, power ratings (up to 9A, 125VAC with agency approvals) and circuit choices (single or double pole).
The LP11 and ULP were both selected for their illumination potential, including RGB or bi-color LED, cap size/style options and long life cycles.
Usage: Selector switches
The LP11 and ULP were both selected for their illumination potential, including RGB or bi-color LED, cap size/style options and long life cycles.

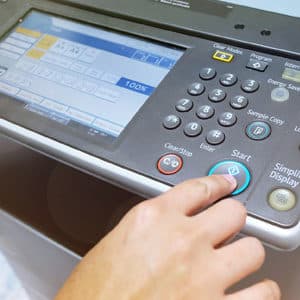

Usage: Start Switch
The momentary RP8600 pushbutton provided a threaded mount, sealed IP67 rating with a stainless steel actuator and 16mm panel cutout.

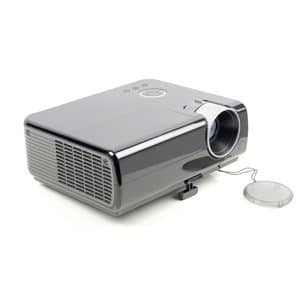

Usage: On/Off Power Switch
The PV6 was selected for its IP65 rating, 16mm cutout, illuminated ring and power symbol option and 300mm wire leads.

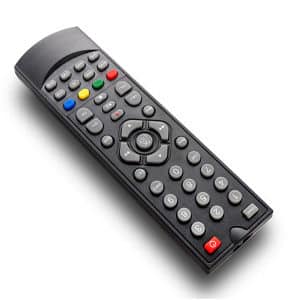

Usage: On/Off Power Switch and Selection Buttons
The TL3301 has a compact, 6mm x 6mm SMT design with multiple operating force, actuator height and cap options.
The TL3342 is an ultra low profile (1.50mm), SMT tact with five different operating force options.
Usage: On/Off Power Switch
The RB2 offered the perfect solution because of its IP54 rating, full/dot illumination potential, custom actuator markings and power ratings (up to 20A, 125VAC, 3/4HP).
Usage: On off/reset buttons and other selector buttons
The TL3315 provides a surface mount design, ultra low profile (0.55mm), compact footprint (4.5mm x 4.5mm) and multiple operating force options with up to 1,000,000 life cycles.

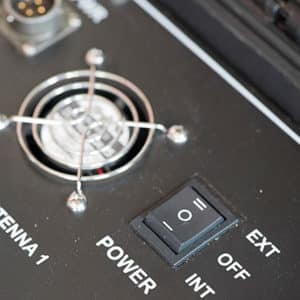

Usage: On/Off Power Switch
The R1973 was designed into this product for its full illumination, actuator markings, power rating (up to 9A with UL, cUL approval) and 19.2mm x 13mm panel cutout.
Usage: Selection and On/Off Switch
The ULP was preferred because of its cap color and style options (including RGB illumination), latching configuration option and long life.
Usage: Selection and Power On/Off Switch
The P16 was utilized for its front panel design (16mm cutout), illumination options, cURus power rating (up to 8A) and functionality (up to four poles).

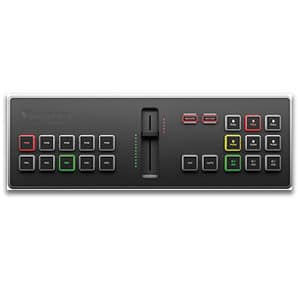

Usage: Selection Switch
The TL1220 is a popular choice for broadcast equipment because of its multiple illuminated cap options (including single color and bi-color LED), sharp tactile response and variety of button styles and colors.
Usage: Controller Switches
The LP11 and ULP were both selected for their illumination potential, including RGB or bi-color LED, cap size/style options and long life cycles.
Usage: Power On/Off and Selection Switches
The TL1105 was preferred for its compact size (6mm x 6mm), long cycle life, operating force options and through hole right angle mounting design.
Usage: Controller Switch
The 100 Series toggle switch was selected for its functionality (up to four poles available), miniature size, epoxy seal and actuator/bushing options.
