What Are Snap Action Switches and What Are They Used For?

What is a Snap Action Switch?

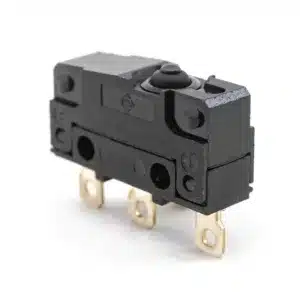

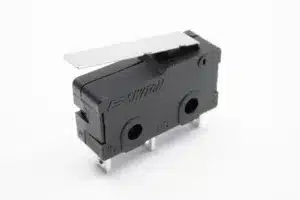

Snap action switches, also called microswitches, are switch devices that can open and/or close an electrical circuit at a rapid speed. Triggered by an external force, either human or physical object, which is then applied to the actuator, requiring very little pressure to operate.

They are characterized by their quick and decisive switching action, often producing a sharp “snap” sound when the contacts move from one position to another.

How Do They Work?

Here’s how they work:

Basic Structure:
- These switches consist of a few key components: a spring, an actuator and a set of electrical contacts.
- The switch has a mechanical mechanism that maintains a stable position under normal conditions.
Actuation:
- The actuator is the part of the switch that’s physically pressed or moved to change the state of the switch.
- When an external force is applied to the actuator, it compresses or moves the spring within the switch.
Snap Action:
- The term “snap action” refers to the rapid and decisive movement of the switch contacts.
- As the force on the actuator overcomes a certain threshold, the spring reaches a critical point where it rapidly changes position.
- This sudden change in the position of the spring causes the contacts to move quickly from one state to another.
Contact Movement:
- They typically have a set of movable contacts and stationary contacts.
- When the switch is actuated, the movable contacts snap into a new position, making or breaking the electrical connection with the stationary contacts.
Functionality:
- They’re often used in applications where quick and reliable switching is required, such as in appliances, control panels, limit switches and various industrial applications.
- The snap action ensures that the switch operates with a consistent and reliable force, providing a clear indication of the switch state.
Resetting:
- Once the external force on the actuator is removed, the spring returns to its original position, causing the contacts to snap back to their initial state.
- This quick return to the stable position is crucial for the switch’s ability to respond rapidly to changes in the actuation force.

What Are Snap Action Switches Used For?

Reliability and long operating life make these switches ideal for countertop appliances, the automotive industry, timer controls, medical devices, vending machines, electronics and robotics, aerospace, gaming devices, power tools, HVAC systems and industrial equipment.

Pros & Cons

Pros

Quick and Reliable Switching:
- They’re known for their rapid and decisive switching action, providing quick and reliable responses.
Longevity:
- These switches are designed for durability and can withstand a large number of switching cycles without significant wear or degradation.
Versatility:
- They come in various sizes and configurations, making them versatile and suitable for a wide range of applications across different industries.
Clear Feedback:
- The tactile feedback provided makes it clear to the user when the switch has been actuated, which is beneficial for user interfaces.
Compact Design:
- They can be designed in relatively small and compact forms, making them suitable for applications where space is limited.
Low Power Consumption:
- These switches typically have low power consumption, making them energy-efficient in many applications.
Cost-Effective:
- They’re often cost-effective compared to some alternative switches, contributing to their widespread use in various consumer and industrial products.

Cons

Limited Current Capacity:
- They may have limitations on the amount of electrical current they can handle. For high-current applications, alternative switches might be preferred.
Contact Bounce:
- Like many mechanical switches, they can experience contact bounce — a phenomenon where the contacts make and break rapidly when the switch is actuated. This can be mitigated with additional circuitry.
Mechanical Complexity:
- The internal mechanisms of these switches can be relatively complex, which may make them more prone to mechanical failure compared to simpler switches.
Environmental Sensitivity:
- Some switches may be sensitive to environmental conditions such as moisture, dust or temperature extremes. Sealed or protected versions are available for more demanding environments.
Limited Force Adjustment:
- In some designs, adjusting the actuation force may not be as straightforward, limiting customization options for certain applications.
Noise Generation:
- The sharp “snap” sound produced during the switching action may be undesirable in noise-sensitive applications.
Not Ideal for High-Frequency Switching:
- While they are quick, they might not be the best choice for applications requiring extremely high-frequency switching.

E-Switch Snap Action Switch Offerings

Head to E-Switch.com’s Snap Action section of the product catalog to view the different series, review data sheets, confingure your own and purchase now.

LS Series Long Life, Snap Action Switch
