E-Switch offers multiple navigation switches meant for consumer electronics applications. What’s a navigation switch? Navigation, or joystick switches, are designed for applications that require regular user interface. One of the main advantages for this type of switch is that they can replace five independent switches. Some obvious examples of navigation switches can be found on gaming controls, digital cameras, or most consumer electronics that require any kind of navigational control.
JS1300 Series 5-position Navigation Switch
- GPS tracking systems
- Handheld consumer devices
- Navigation
- Wireless communications
This switch has a long life expectancy of up to 200,000 cycles and operates in temperatures ranging from -20°C to 70°C. The JS1300 Series 5-position switches are electrically rated for 20mA of 12VDC current and are great for use in consumer applications where user interface is needed, such as:

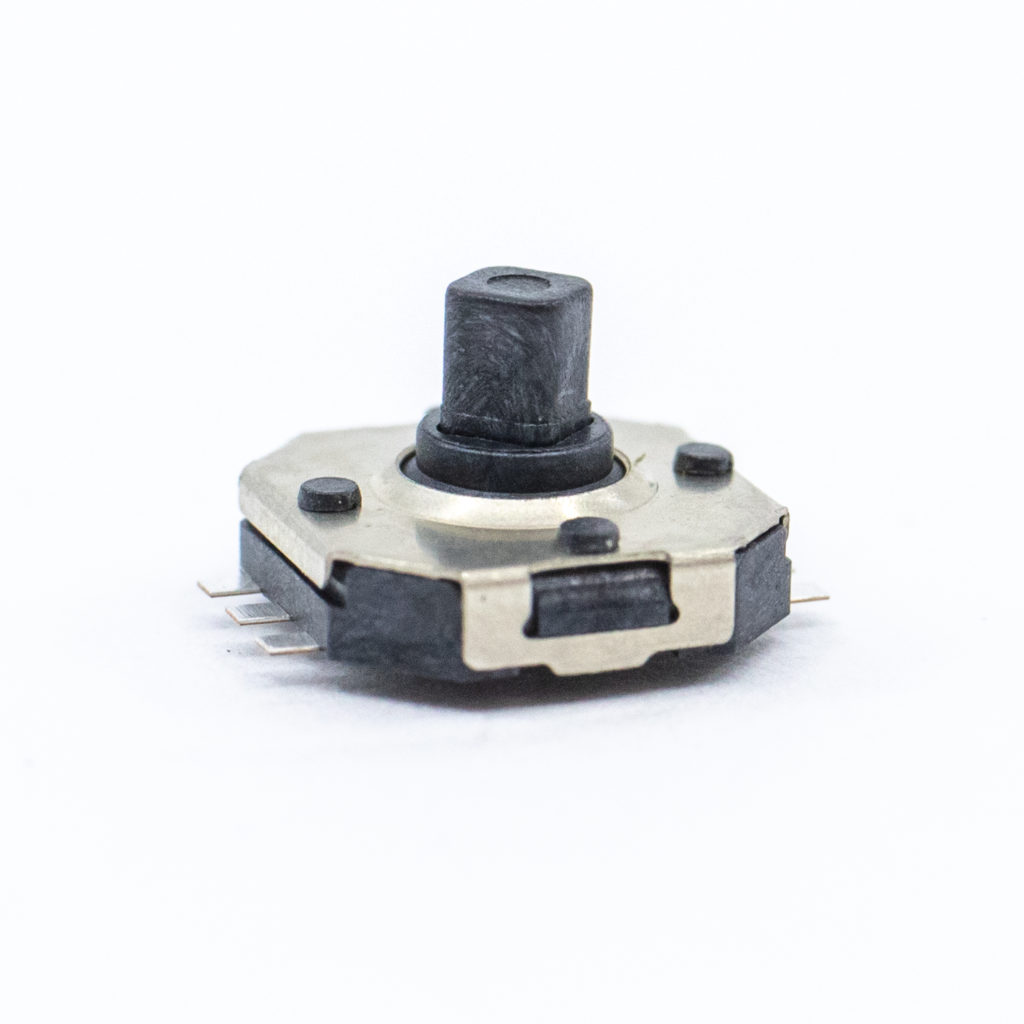

JS1400 Series 5-position, Joystick Switch
The JS1400 Series 5-position, joystick switch will not only stand the test of time, but of hot and cold environments as well. The JS1400 Series navigation switches operate in temperatures ranging from -20 to 70°C and can be stored at temperatures ranging from -40 to 85°C. These switches are used in applications where user interface is needed, like:
- Handheld instrumentation
- Navigation
- Telecommunications
- Consumer electronics
JS5208 Series 5-position, Joystick Switch
The JS5208 Series joystick switch is electrically rated to handle 20mA of 15VDC current and is designed for surface mount applications such as consumer electronics where a user interface is required. Other applications for this 5-position, joystick switch include:
- Handheld instrumentation
- Telecommunications
- Navigation
