Looking for a miniature toggle switch? These versatile components are always in high demand for various applications due to their compact size, reliable functionality and low cost.
If you need a toggle switch for a musical instrument, home appliance, consumer electronic or machinery controls, E-Switch has the right miniature toggle switch for your application. Browse our selection of miniature toggle switches below, or take a look at our complete catalog of toggles (including standard-sized and high-current, power rated options) right here.
Miniature Toggle Switch Products
100 Series Miniature Toggle Switch
- SPDT, DPDT, 3PDT or 4PDT; Momentary or latching functions
- 17 different types of panel mount and through hole mounting options
- 11 different actuator options
- 15 different bushing options
- Silver or gold contact material
- Silver – 5A, 120VAC or 28VDC; 2A, 250VAC (UL, cUL)
- Gold – 0.4VA Max. @ 20V Max. (AC or DC)
- Epoxy sealed terminals
100A Series Sealed Miniature Toggle Switch
- Sealed to an IP67 rating
- SPDT or DPDT; Momentary or latching functions
- Multiple panel mount and through hole mounting options, including right angle, vertical and with a bracket
- Silver or gold contact material
- Silver – 5A, 120VAC or 28VDC; 2A, 250VAC (UL, cUL)
- Gold – 0.4VA Max. @ 20V Max. (AC or DC)
- Two actuator height options
200 Series Subminiature Toggle Switch
- SPST, SPDT or DPDT; Momentary or latching functions
- Multiple panel mount and through hole mounting options, including right angle, vertical and with a bracket
- Silver or gold contact material
- Silver – 3A, 120VAC or 28VDC; 1A, 250VAC (UL, cUL)
- Gold – 0.4VA Max. @ 20V Max. (AC or DC)
- Five actuator height options
200A Series Sealed Subminiature Toggle Switch
- Sealed to an IP67 rating
- SPDT or DPDT; Momentary or latching functions
- Silver or gold contact material
- Silver – 3A, 120VAC or 28VDC; 1A, 250VAC (UL, cUL)
- Gold – 0.4VA Max. @ 20V Max. (AC or DC)
- Multiple actuator and bushing options
- Multiple mounting/termination options
200B Series Sealed Subminiature Toggle Switch
- Sealed to an IP67 rating
- SPDT; Momentary or latching functions
- Silver or gold contact material
- Silver – 3A, 120VAC or 28VDC; 1A, 250VAC
- Gold – 04.VA, 20V Max. (AC or DC)
- Surface mount right angle mounting design
- Tape and reel packaging

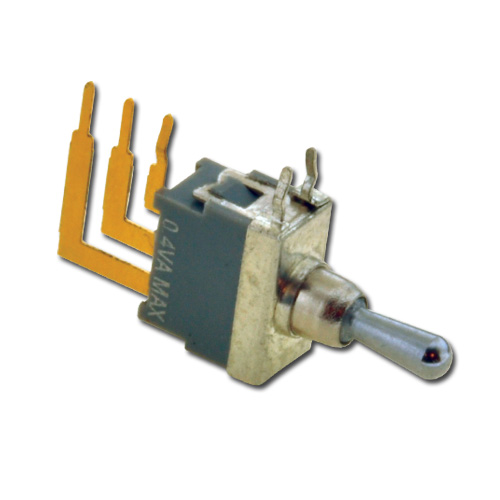

200R Series Miniature Toggle Switch
- SPDT or DPDT; Momentary or latching functions
- Gold contact material
- Electrical rating: 0.4VA, 48V Max. (AC or DC)
- Through hole, through hole right angle, through hole right angle vertical mounting/termination options
- Up to 40,000 cycles life expectancy
200U Series Ultraminiature Sealed Toggle Switch
- Sealed to an IP67 rating
- SPST, SPDT or DPDT; Momentary or latching functions
- Gold contact material
- Electrical rating: 0.4VA, 20V Max. (AC or DC)
- Through hole, through hole right angle, through hole right angle vertical mounting/termination options
If you’re interested in browsing the complete catalog of E-Switch products, follow this link.
