Wearable and handheld devices have a unique set of considerations to optimize for both form and function. The user wants the product to be as discrete and accessible as possible — like an extension of one’s own body — and E-Switch provides a wide range of miniature switches to fit nearly any compact product developed for the wearable and handheld technology market. Whether you require a tact switch that is surface mountable, right angle actuated, illuminated or even a navigational or detector switch for your application, E-Switch has the solution.
Below, you’ll find sections for the best miniature tactile, pushbutton, toggle, snap action, detector, slide and navigation switches.
Best Miniature Switches: Mini and Micro Electromechanical Switch Products
Select any product to look at the detail specifications; continue below for more information on each and to purchase directly online.
Best Miniature Switches: Tact
ELECTRICAL RATING: 50mA @ 12VDC LIFE EXPECTANCY: 200,000 Cycles CONTACT RESISTANCE: 100mΩ Max. Initial INSULATION RESISTANCE: 100MΩ Min. @ 500VDC DIELECTRIC STRENGTH: 100VAC ACTUATOR FORCE: 160gf ± 50gf OPERATING TEMPERATURE: -20°C to 70°C STORAGE TEMPERATURE: -40°C to 80°C TRAVEL: 0.2 ± 0.1mm PACKAGING: Tape and Reel
ELECTRICAL RATING: 50mA @ 12VDC ELECTRICAL LIFE: 100,000 cycles CONTACT RESISTANCE: 100mΩ Max INSULATION RESISTANCE: 100MΩ Min @ 500VDC DIELECTRIC STRENGTH: 250VAC for 1 Minute OPERATING TEMPERATURE: -40°C to 85°C STORAGE TEMPERATURE: -40°C to 85°C TRAVEL: 0.25mm CONTACT ARRANGEMENT: SPST ACTUATION FORCE: 100gf; 160gf; 260gf
ELECTRICAL RATING: 50mA ELECTRICAL LIFE: 100gf: 1,000,000 cycles; 160gf: 500,000 cycles; 250gf: 200,000 cycles CONTACT RESISTANCE: 200mΩ Initial Max. INSULATION RESISTANCE: 50MΩ Min. at 100VDC DIELECTRIC STRENGTH: 250VAC OPERATING FORCE: 100gf ± 30gf; 160gf ± 50gf; 250gf ± 50gf TRAVEL: 0.20mm OPERATING TEMPERATURE: -20°C to 70°C STORAGE TEMPERATURE: -25°C to 80°C
ELECTRICAL RATING: 50mA @ 12VDC LIFE EXPECTANCY: 130gf: 50,000 cycles; 260gf: 30,000 cycles CONTACT RESISTANCE: 100mΩ INSULATION RESISTANCE: 100MΩ DIELECTRIC STRENGTH: 250VAC ACTUATION FORCE: 130gf ± 40gf; 260gf ± 50gf OPERATING TEMP: -30°C to 70°C TRAVEL: 0.25mm ± 0.15mm
ELECTRICAL RATING: 50mA @ 12VDC MECHANICAL LIFE: 100,000 Cycles ELECTRICAL LIFE: 100,000 Cycles CONTACT RESISTANCE: 500mΩ (Initial Max.) INSULATION RESISTANCE: 100MΩ (Min. @ 100V) DIELECTRIC STRENGTH: 500VDC ACTUATION FORCE: 160gf ± 50gf; 130gf ± 30g OPERATING TEMPERATURE: -35°C to 85°C STORAGE TEMPERATURE: -35°C to 85°C TRAVEL: 0.20 ± 0.10mm
ELECTRICAL RATING: 50mA @ 32VDC ELECTRICAL LIFE: Up to 200,000 cycles CONTACT RESISTANCE: 100mΩ Max INSULATION RESISTANCE: 1GΩ Min @ 500VDC DIELECTRIC STRENGTH: 250VAC for 1 Minute OPERATING/STORAGE TEMPERATURE: -40°C to 85°C TRAVEL: 0.25mm CONTACT ARRANGEMENT: SPST ACTUATION FORCE: 200gf ± 50gf (200,000 Cycles) 300gf ± 75gf (150,000 Cycles) 400gf ± 100gf (100,000 Cycles) DUST/MOISTURE PROTECTION: IP67 PACKAGING: Tape and Reel (7,000 pieces/reel for Actuator A; 3,000 pieces/reel for Actuator B)
#1. TL1015 Series
The TL1015 Series ultraminiature tact switch is top actuated for miniature surface mount applications. This tact switch is available with and without boss (locating pin) and has gull-wing termination. It comes in tape and reel packaging. TL1015 Series tactile switches have a life expectancy of 200,000 cycles and operate in temperatures ranging from -20°C to 70°C. They can be stored at temperatures ranging from -40°C to 80°C.
FEATURES
- 3mm x 4mm tact switch
- 160 ± 50gf operating force
- Surface mount design
- Silver plated contacts
#2. TL3301 Series
The TL3301 Series SMT tactile switch measures 6mm x 6mm. Designed for surface mountable applications, these tactile switches offer several actuator heights, multiple operating forces and gold or silver plated contacts. The TL3301 Series tact switch has a life expectancy of 100,000 cycles and operates at temperatures ranging from -40°C to 85°C.
FEATURES
- 6mm x 6mm tactile switch
- 100gf 160gf, and 260gf options
- Surface mount design
- Silver or gold plated contacts

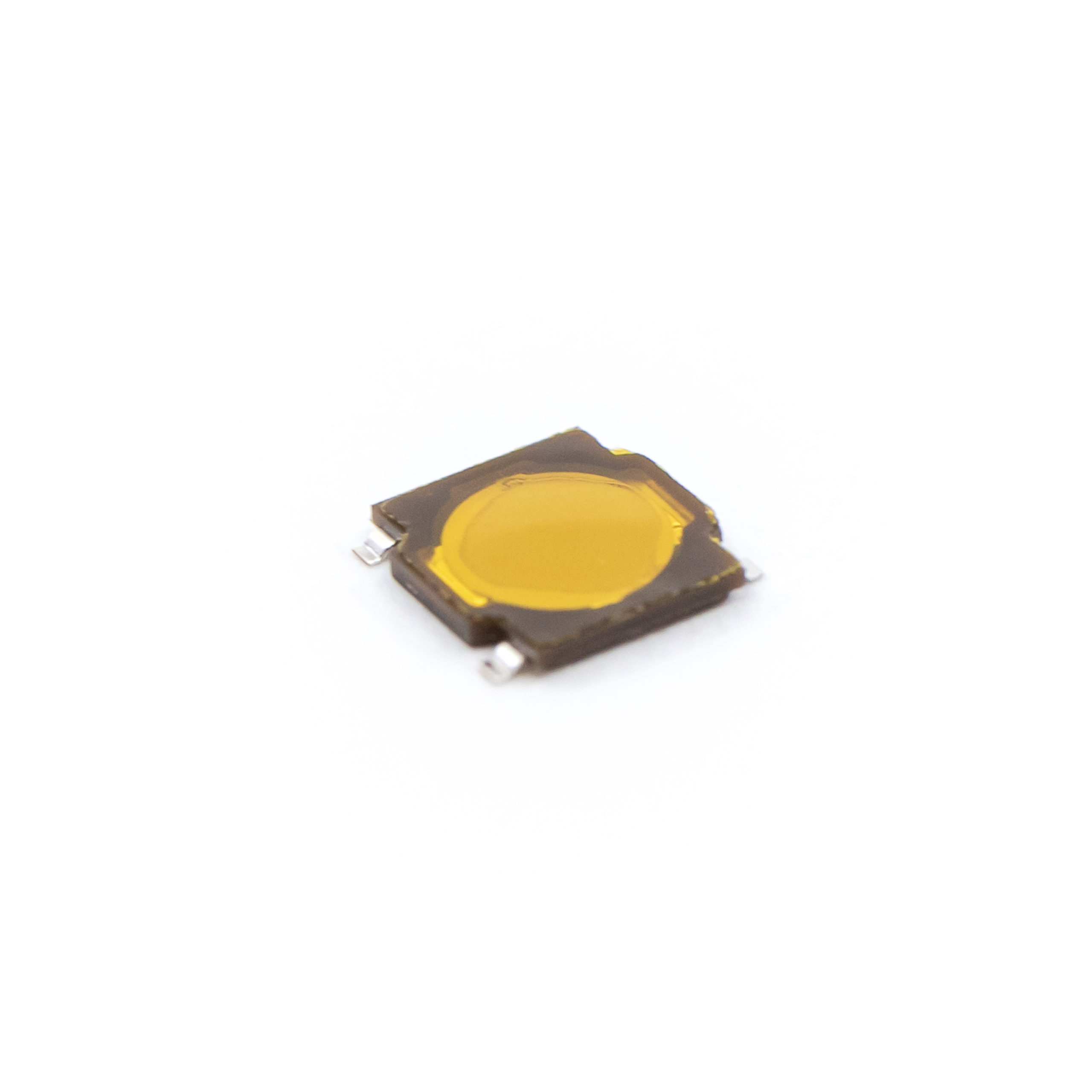

#3. TL3315 Series
The TL3315 Series tactile switch features a 0.55mm profile and is surface mountable, making it great for applications that have a tight fit. TL3315 tactile switches are available with three operating force options: 100gf, 160gf or 250gf. TL3315 Series tact switches measure 4.5mm x 4.5mm and operate at -20°C to 70°C. The three different operating forces result in different life expectancies. The 100gf version of this tactile switch comes with the longest life expectancy of 1,000,000 cycles. The 160gf option gives this tact switch a life expectancy of 500,000 cycles, and the 250gf version results in a 200,000-cycle life expectancy.
FEATURES
- 4.5mm x 4.5mm tactile switch
- Ultra low profile with 0.55mm height
- 100 ± 30gf, 160 ± 50gf, 250 ± 50gf options
- Surface mount design
#4. TL3330 Series
The TL3330 Series SMT, right angle tactile switch has a low profile that works great for many consumer electronics applications thanks to its right angle mounting option. The TL3330 Series tact switch features silver contacts in a gull-wing design and a choice between two gram force options: 130 gf or 260gf. The 130gf version of this tactile switch has a life expectancy of 50,000 cycles, while the 260gf version has a 30,000-cycle life expectancy. These tact switches are operational at -20°C to 70°C.
FEATURES
- 6.9mm x 3.3mm tactile switch
- 100 ± 40gf and 200 ± 50gf options
- Right angle surface mount design
- Silver plated contacts

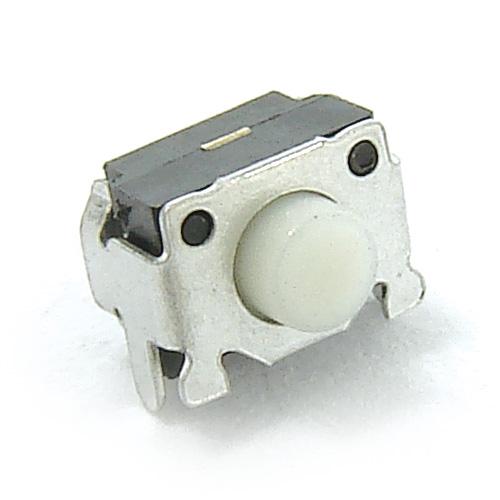

#5. TL3340 Series
The TL3340 Series right angle SMT, subminiature tact switch features reliable tactile dome technology and a strong tactile force. This mini switch is 4mm x 3.3mm in size and features silver plated contacts in a gull-wing design that’s surface mountable. These tactile switches have a life expectancy of 100,000 cycles with either the 160gf or 130gf operating force options. Operating temperatures range from -35°C to 85°C, making this tactile switch suitable for various environments.
FEATURES
- 4.25mm x 3.3mm tactile switch
- 160 ± 50gf and 130gf ± 30gf options
- Right angle, surface mount design
- Silver plated contacts
#6. TL6330 Series
The TL6330 Series tactile switch offers a surface mount, PC board design with a small package size of 2.80mm x 4.60mm with actuator height options of 1.90mm or 2.50mm. These high-temperature tactile switches have a long life of up to 200,000 cycles and operate in temperatures ranging from -40°C to 85°C. This SMT tact switch is a Single Pole, Single Throw (SPST) switch with 200, 300 or 400 gram force options and an IP67 rating for protection against dust and moisture. The electrical rating on these tactile switches is 50mA of 32VDC current and the actuator travel is 0.25mm.
FEATURES
- IP67 rating for dust and moisture protection
- Surface mount, PC board mounting design
- Long life of up to 200,000 cycles
- Small package size of 2.80mm x 4.60mm, with two actuator height options
- 200gf, 300gf, 400gf operating force options
Best Miniature Switches: Pushbutton
ELECTRICAL RATINGS: 1A @ 250VAC; 3A @ 120VAC or 28VDC ELECTRICAL LIFE: 50,000 Cycles Typical CONTACT RESISTANCE: 10mΩ Max. Typical at 2-4VDC; 100mA For Both Silver and Gold Plated Contacts INSULATION RESISTANCE: 1,000MΩ Min. DIELECTRIC STRENGTH: 1,000V RMS at Sea Level OPERATING FORCE: 200gf ± 50gf OPERATING/STORAGE TEMPERATURE: -30°C to 85°C / MATERIALS / CASE: Diallyl phthalate (DAP) PLUNGER: Glass Filled Nylon or Glass Filled Polyester BUSHING: Nickel Plated Brass HOUSING: Stainless Steel CONTACTS: Silver or Gold Plated Copper Alloy
ELECTRICAL RATING: 3A @ 120VAC or 28VDC; 1A @ 250VAC LIFE EXPECTANCY: 50,000 Cycles Typical CONTACT RESISTANCE: 10mΩ Max. Typical at 2-4VDC; 100mA For Both Silver and Gold Plated Contacts INSULATION RESISTANCE: 1,000MΩ Min. DIELECTRIC STRENGTH: 1,000V RMS at Sea Level ACTUATION FORCE: 200gf ± 50gf OPERATING/STORAGE TEMPERATURE: -30°C to 85°C MATERIALS / CASE: Diallyl Phthalate (DAP) PLUNGER: Glass filled nylon or glass filled polyester BUSHING: Diallyl Phthalate (DAP) HOUSING: Stainless steel CONTACTS: Silver or Gold plated copper alloy
ELECTRICAL RATING: 100mA @ 30VDC MECHANICAL LIFE: 30,000 Cycles Min. ELECTRICAL LIFE: 10,000 Cycles Min. CONTACT RESISTANCE: 100mΩ Max. INSULATION RESISTANCE: 100MΩ Min. DIELECTRIC STRENGTH: 250VAC for 60 Seconds OPERATING FORCE: 2 Pole: 230gf ± 50gf; 4 Pole: 280gf ± 50gf; 6 Pole: 380gf ± 50gf OPERATING/STORAGE TEMPERATURE: -20°C to 70°C MATERIALS / HOUSING: PBT (UL94-HB) Standard or (UL94-V0) ACTUATOR: POM Standard or PA66 (UL94-V0) TERMINAL BASE: PA66 (UL94-HB) Standard or (UL94-V0) MOVING CONTACTS: Silver (std) or Gold Copper Alloy TERMINALS: Silver Over Brass
ELECTRICAL RATING: 100mA @ 30VDC LIFE EXPECTANCY: 10,000 Cycles CONTACT RESISTANCE: 100mΩ Max. INSULATION RESISTANCE: >100MΩ Min. DIELECTRIC STRENGTH: 500VAC OPERATING FORCE: See Individual Model TRAVEL: See Individual Model MATERIALS/HOUSING: PBT ACTUATOR: Acetal COVER: Acetal CONTACTS: Silver plated phosphor bronze TERMINALS: Silver plated copper alloy SPRING: Stainless steel Latching PIN: Stainless steel
#1. 800 Series
800 Series subminiature pushbutton switches have a snap-in panel mount option and a butt contact design. These tiny pushbutton switches offer a variety of termination options: right angle PCB pin, solder lug, right angle PCB pin with bracket, vertical PCB pin and vertical PCB pin with bracket. The travel of the actuator on the 800 Series pushbutton switch is 0.9mm, and the operating force is 200gf. These pushbutton switches operate at temperatures ranging from -30 to 85°C and have a typical life expectancy of 50,000 cycles.
FEATURES
- 3A, 120VAC or 28VDC electrical rating
- Through-hole mounting design
- 1 pole; momentary functions
- Variety of bushing and terminal options
#2. 800A Series
The 800A Series sealed, subminiature pushbutton switches have an IP67 rating for protection against dust and moisture. They perform Single Pole, Single Throw (SPST) or Single Pole, Double Throw (SPDT) functions with multiple termination options: right angle PCB pin and vertical PCB pin. The 800A Series subminiature pushbutton switch features an actuator with 0.9mm of travel requiring an operating force of 200gf to actuate. This sealed pushbutton switch is durable and long-lasting, with a life expectancy of 50,000 cycles and an operating temperature range from -30°C to 85°C.
FEATURES
- IP67 sealed for dust and moisture protection
- 3A, 120VAC or 28VDC electrical rating
- Through-hole mounting design
- 1 pole; momentary functions
#3. PBH Series
The PBH Series right angle pushbutton switch has an ultra light feel and is PCB mountable. These switches feature the option of DPDT, 4PDT, or 6PDT circuits and can perform either momentary or maintained functions. The operating force required to actuate the switch depends on the number of poles. The spring-loaded actuator travels 5.5mm regardless. PBH Series right angle pushbutton switches operate at temperatures between -20°C and 70°C. They are rated to handle 100mA of 30VDC electrical current.
FEATURES
- 100mA, 30VDC electrical rating
- PC board, right angle mounting design
- Up to 6 poles with momentary and maintained (latching) functions
#4. TL2201 Series
The TL2201 Series subminiature pushbutton switches are available as latching or momentary pushbuttons with long travel of 2.5mm. Circuit options include double pole, double throw (DPDT) and four pole, double throw (4PDT). The DPDT switch requires 220 grams of operating force to actuate, and the operating force for the 4PDT switch is 300gf. The TL2201 Series subminiature pushbuttons are electrically rated for 100mA of 30VDC current. The operating temperature range for these switches is from -20 to 70°C, and their life expectancy is 10,000 cycles.
FEATURES
- Long travel, with actuator and cap options
- 100mA, 30VDC electrical rating
- PC board mounting design
- Up to 4 poles; momentary and maintained (latching) functions
Best Miniature Switches: Toggle
CONTACT RATING: Dependent on Contact Material MECHANICAL LIFE: 40,000 Make-and-Break Cycles ELECTRICAL LIFE: 6,000 at Full Power CONTACT RESISTANCE: 10mΩ Max. Initial INSULATION RESISTANCE: 1,000MΩ Min. DIELECTRIC STRENGTH: 1,000V RMS at Sea Level OPERATING TEMPERATURE: –30°C to 85°C TORQUE: Max. 5kg·cm (70 ounce·inch) MATERIALS CONTACTS/TERMINALS: Silver or Gold Plated Copper Alloy
ELECTRICAL RATING: 0.4VA, 20V Max. (AC or DC) LIFE EXPECTANCY: 40,000 Cycles CONTACT RESISTANCE: 100mΩ Max. INSULATION RESISTANCE: 500MΩ Min. at 500VDC DIELECTRIC STRENGTH: 500VDC for 1 minute OPERATING TEMPERATURE: -30°C to 85°C SINGLE AND DOUBLE POLE FUNCTIONS: On-On, On-Off-On, Off-On

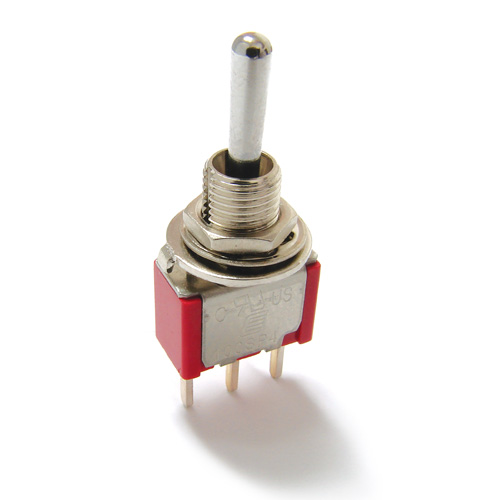

#1. 100 Series
The 100 Series miniature toggle switches have multiple termination options: quick connect, right angle PCB pin, solder lug, vertical PCB pin and wire wrap. They are also available as a locking toggle switch or flat lever toggle switch. Actuators come in metal or plastic. See the K1 and K2 actuator options on the PDF data sheet. The 100 Series mini toggle switch offers circuits with up to four poles. These toggle switches are PCB mountable and are available in through-hole or right angle termination. Bushing options for these custom toggle switches include high torque, non-threaded, threaded and splash proof.
FEATURES
- Up to 4 poles available
- Variety of switching functions
- Miniature
- Multiple actuator & bushing options
#2. 200U Series
The 200U Series ultraminiature toggle switch is the smallest toggle switch E-Switch offers. It’s sealed to an IP67 rating for protection against dust and moisture. With a life expectancy of 40,000 cycles and an operating temperature range from -30°C to 85°C, you can count on the 200U Series toggle switch to do its job for a long time. These ultraminiature toggle switches complete single-pole and double-pole maintained (latching) functions with an electrical rating of 0.4VA of 20V maximum alternating or direct current. The 200U Series ultra-miniature toggle switch also has right angle and vertical right angle mounting options with a PC board pin mounting configuration.
FEATURES
- Sealed to IP67 rating for dust and moisture protection
- Life expectancy of up to 40,000 cycles
- Ultraminiature in size: 4.5mm x 7mm
- Vertical right angle or right angle PCB mounting options
Best Miniature Switches: Detector
ELECTRICAL RATING: 1mA @ 5VDC LIFE EXPECTANCY: 100,000 Cycles CONTACT RESISTANCE: 2Ω Max.Initial INSULATION RESISTANCE: 100MΩ Min. @ 100VDC DIELECTRIC STRENGTH: 100VAC for 1 minute OPERATING TEMPERATURE: -40°C to 85°C STORAGE TEMPERATURE: -40°C to 85°C TRAVEL: 2.2mm CONTACT ARRANGEMENT: SPST ACTUATION FORCE: 50 grams max

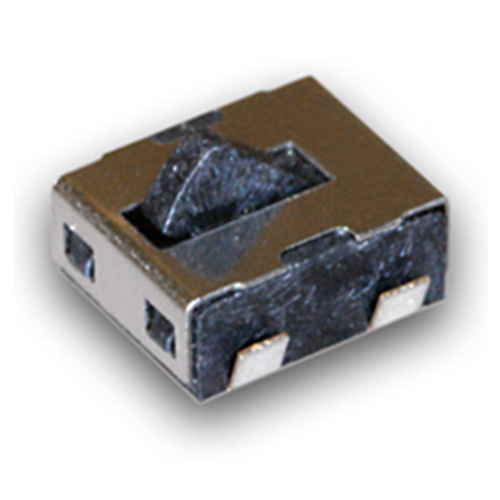

#1. TD4700 Series
The TD4700 Series SMT detector switches are ultraminiature with a very low profile. They feature smooth operations and a guiding post for easy orientation. The TD4700 Series ultraminiature detector switches operate in temperatures ranging from -40°C to 85°C and have a long life expectancy of 100,000 cycles.
FEATURES
- Long life expectancy of 100,000 cycles
- Ultraminiature
- Very low profile
Best Miniature Switches: Slide
ELECTRICAL RATING: 25mA @ 24VDC ELECTRICAL LIFE: 10,000 cycles CONTACT RESISTANCE: 70mΩ Max. INSULATION RESISTANCE: 1MΩ Min @ 100VDC DIELECTRIC STRENGTH: 100VAC for 1 Minute OPERATING TEMPERATURE: -20°C to 70°C STORAGE TEMPERATURE: -40°C to 85°C TRAVEL: 1.50mm CONTACT ARRANGEMENT: SPDT ACTUATION FORCE: 150±100gf
#1. EG1215 Series
The EG1215 slide switch is a surface mount PCB design and offers a compact package design of 2.60mm x 6.70mm with a 1.40mm profile height. These slide switches provide SPDT contact arrangements, 1.50mm of actuator travel and actuation force of 150gf. The electrical rating on the EG1215 Series slide switches is 25mA of 24VDC with an electrical life of 10,000 cycles. They operate in temperatures ranging from -20°C to 70°C and can be stored at temperatures ranging from -40°C to 85°C.
FEATURES
- Surface mount, PC board design
- 1.50mm travel
- Compact design
- 150gf operating force
- SPDT function
Best Miniature Switches: Snap Action
ELECTRICAL RATING: 0.1A @ 125VAC or 48VDC MECHANICAL LIFE: 3,000,000 Cycles CONTACT RESISTANCE (Initial Max.): 300mΩ at 5VDC INSULATION RESISTANCE: 100MΩ Min. @ 500VDC DIELECTRIC STRENGTH (1 Min.): 1,000V BOUNCE: 5m Second Max OPERATING/STORAGE TEMPERATURE: -25°C to 85°C OPERATING FORCE: 70gf ± 20gf

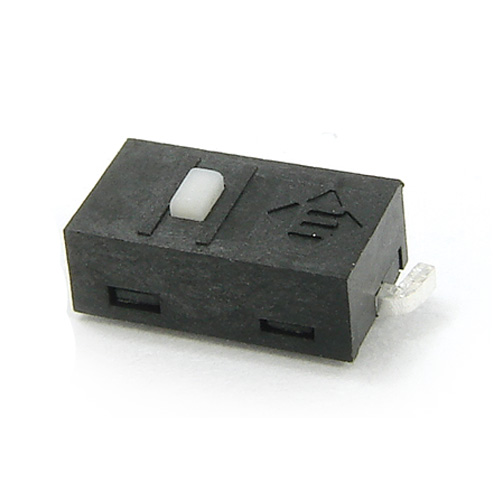

#1. TS2 Series
The TS2 Series surface mount, snap action switch has a subminiature package size and is designed for higher reliability applications. These snap action switches feature electrical and mechanical life expectancies of three million cycles and operate in temperatures ranging from -25 to 85°C. The TS2 Series subminiature, snap action switches come with pin plunger actuators and Single Pole, Single Throw (SPST) circuits. Contacts offer electrical ratings of 100mA for both direct and alternating currents. These surface mount switches are 8.6mm (W) x 3.0mm (H) x 4.8mm (D).
FEATURES
- 3,000,000 cycle life expectancy
- 100mA, 125VAC or 48VDC electrical rating
- Subminiature size
- Surface mount design
Best Miniature Switches: Navigation
ELECTRICAL RATING: 20mA @ 12VDC MECHANICAL LIFE: 200,000 Actuations in Any Direction (X, Y, or Z) CONTACT RESISTANCE: 500mΩ INSULATION RESISTANCE: 100MΩ DIELECTRIC STRENGTH: 100VAC for 1 Minute OPERATING TEMPERATURE: -20°C to 70°C OPERATING/STORAGE FORCE: Center: 320gf +80 / -60gf; Tilt: 180gf ± 60gf TRAVEL: 0.25 ± .015mm / MATERIALS / COVER: Nickel Silver BASE: Nylon ACTUATOR: Nylon MOVING CONTACT: Stainless Steel, Silver Plated TERMINALS: Copper Alloy, Silver Plated TAPE: Teflon

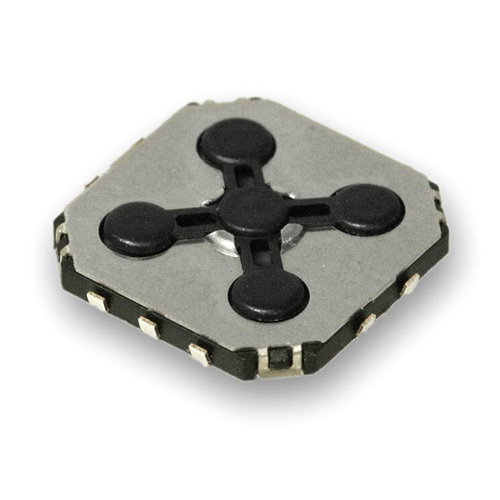

#1. JS1300 Series
The JS1300 Series five-position navigation switch is loaded with features, including north, south, east, west and center actuation, a very low profile and sleek, surface mount design. This navigation switch also has a long life expectancy of up to 200,000 cycles and operates in temperatures ranging from -20°C to 70°C. The JS1300 Series five-position navigation switch is electrically rated for 20mA of 12VDC current and is great for use in consumer applications where user interface is needed.
FEATURES
- 5-position navigation switch
- Long life expectancy of up to 200,000 cycles
- 9.8mm x 9.8mm base; low profile of 1.55mm
- Surface mount design
