E-Switch has a large variety of illuminated pushbutton switches for your applications. Some of the more popular illuminated pushbutton switch series include the LP Series.
LP1 Series Illuminated Round Push Button with Multiple Color Options
![Lp1 Series Illuminated Pushbutton Switch](https://www.e-switch.com/wp-content/uploads/2022/06/LP1-series.jpg)
The LP1 Series is a panel mount switch meant for a round cutout sized 8mm in diameter. The LP1 Series illuminated switches come in multiple LED colors: blue, green, red, white, and yellow. They operate in temperatures ranging from -40 to 85°C and can be stored within that same range.
Specifications include:
- 100mA, 30VDC electrical rating
- 8.2mm panel cutout
- Full LED illumination options
- 1 pole, momentary function
LP11 Series Illuminated Push Button with Multiple LED Color Options
This single pole, single throw (SPST) switch offers non-tactile or tactile actuator options with 12mm, 15mm, or 17.4mm sculptured square cap sizes. There are also numerous illumination options, including RGB or multiple bicolor LED combinations.
Specifications include:
- 100mA, 12VDC electrical rating
- Through-hole mounting design
- 1 pole, momentary function
- Tactile or non-tactile feel options
LP15 Series Illuminated Pushbutton Switch
![LP15 Series Square, Illuminated Pushbutton Switch](https://www.e-switch.com/wp-content/uploads/2022/06/LP15-series.jpg)
The LP15 Series illuminated pushbutton switch features multiple LED colors, custom marking options on the caps, and different cap sizes. The LED colors include red, blue, green, yellow, white, or none. You can also choose from four different button colors: black, red, white, and transparent. Specifications include:
- 1mA, 20VDC electrical rating
- Through-hole mounting design
- Full LED illumination options
- 1 pole, momentary function
LP2 Series Illuminated Pushbutton Switch
![LP2 Series Illuminated Pushbutton Switch](https://www.e-switch.com/wp-content/uploads/2022/06/LP2-series.jpg)
The LP2 Series illuminated pushbutton switch features multiple LED colors, custom marking options on the caps, and different cap sizes. The LED illumination options include red, blue, green, yellow, white, and none. You can also choose from six different button colors: black, red, white, gray, translucent red, and translucent blue.
- 5mA, 5VDC electrical rating
- Through-hole mounting design
- Full LED illumination options
- 1 pole, momentary function
LP4 Series Illuminated Pushbutton Switch
The LP4 Series illuminated pushbutton switch performs either latching or momentary functions and includes right angle or vertical PC mounting options. There are multiple bezel and button design choices and six LED color options.
- 100mA, 30VDC electrical rating
- Right angle and vertical through-hole mounting designs
- Full LED illumination options
- 2 poles, momentary and maintained functions
![LP6 Series Illuminated Pushbutton with Multiple LED Color Options](https://www.e-switch.com/wp-content/uploads/2010/02/LP6OA1ASRG-1024x1024.jpg)

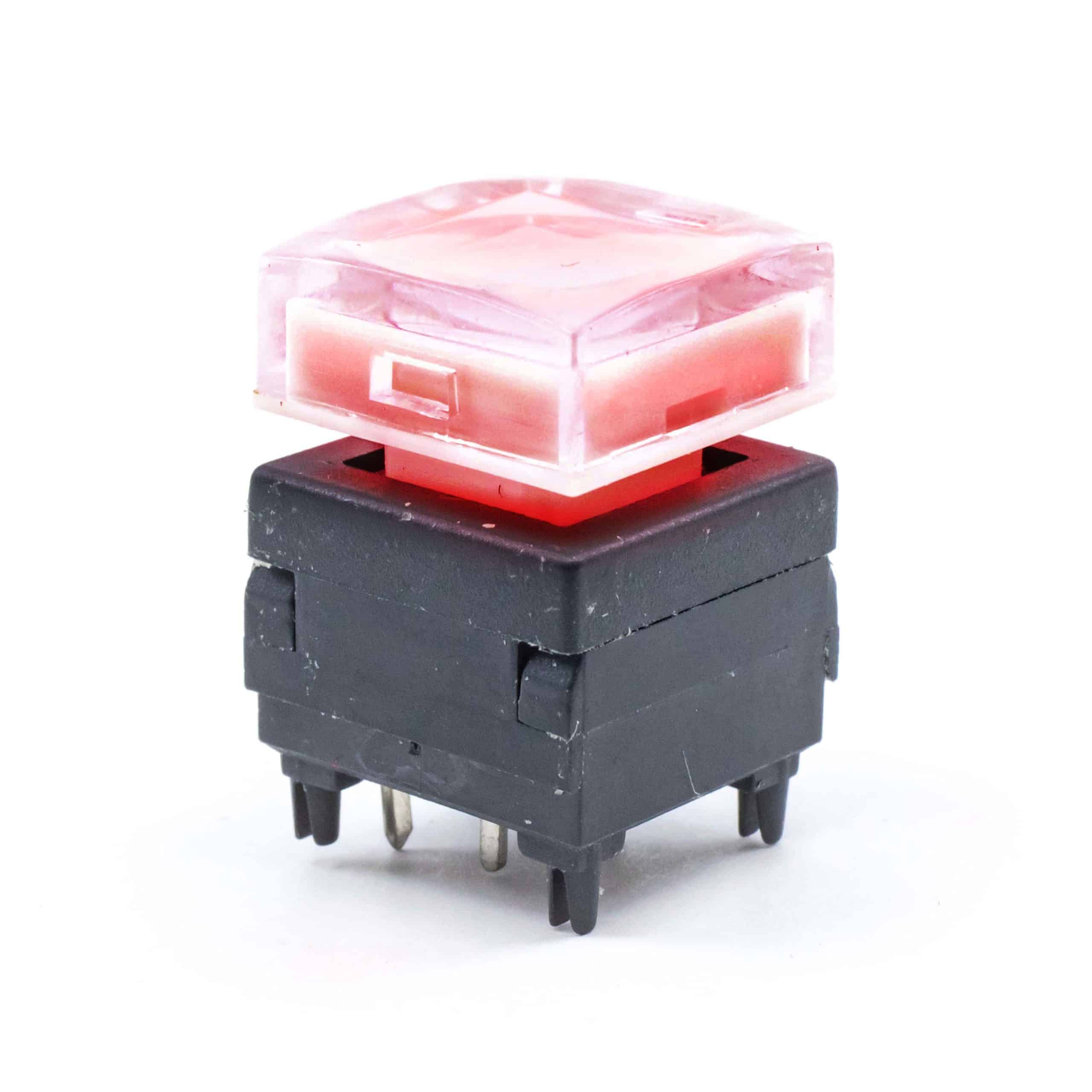

LP6 Series Illuminated Push Button with Multiple LED Color Options
The LP6 Series illuminated pushbutton switch features a sculptured square cap with either an SPST or DPST circuit. Multiple LED color options are available, including RGB colors. These large momentary push buttons have a life expectancy of 200,000 cycles.
- 12mA, 12VDC electrical rating
- Through-hole mount design
- Full LED illumination options
- 1 or 2 poles, momentary functions
