A DIP switch (“Dual In-Line Package”) consists of a series of switches inside a single unit, allowing users to quickly preconfigure an electronic device to a variety of settings for specific situations. Their main advantages are an ability to encode information and quickly change positions while offering a reliable solution for application control. DIP switches are simple, adaptable and low-cost, but what’s the best DIP switch in 2024?
Best DIP Switch 2024
Select any product to look at the detail specifications; continue below for more information on each and to purchase online.
Electrical Rating: 100mA @ 50VDC Non-Switching; 25mA @ 24VDC Switching Life Expectancy: 1,000 Cycles each circuit Contact Resistance: 50mΩ Max. Insulation Resistance: 100MΩ Min. at 500VDC Dielectric Strength: 500VAC for 1 min. Operating Temperature: -40°C to 105°C Storage Temperature: -40°C to 105°C Travel: 0.9mm in each direction Contact Arrangement: SPDT each position
ELECTRICAL RATING: Carry: 100mA @ 50VDC; Switch: 25mA @ 24VDC LIFE EXPECTANCY: 2,000 cycles CONTACT RESISTANCE: 50mΩ Max INSULATION RESISTANCE: 100 MΩ min. at 500 VDC DIELECTRIC STRENGTH: 500VAC for 1 min. OPERATING TEMPERATURE: -20°C to 85°C STORAGE TEMPERATURE: -40°C to 85°C TRAVEL: 1.0mm nominal CONTACT ARRANGEMENT: SPST each position / SOLDERING RECOMMENDATION / WAVE: 500°F (260°C) for 5s Max. HAND: 30W Soldering Iron at 608°F (320°C) for 2s Typical *Keep all switches in the “OFF” position during soldering and cleaning process.
ELECTRICAL RATING: 100mA @ 50VDC (Non-switching); 25mA @ 24VDC (Switching) LIFE EXPECTANCY: 2,000 Cycles each circuit CONTACT RESISTANCE: 100mΩ Max. INSULATION RESISTANCE: 100 MΩ Min. at 500VDC DIELECTRIC STRENGTH: 500VAC for 1 min. OPERATING TEMPERATURE: -20°C to 85°C STORAGE TEMPERATURE: -40°C to 85°C TRAVEL: 0.8mm in each direction CONTACT ARRANGEMENT: SPDT each position
ELECTRICAL RATING: Carry: 100mA @ 50VDC; Switch: 25mA @ 24VDC LIFE EXPECTANCY: 2,000 cycles CONTACT RESISTANCE: 100mΩ Max. INSULATION RESISTANCE: 100MΩ min. at 500 VDC DIELECTRIC STRENGTH: 100VAC for 1 min. OPERATING TEMPERATURE: -20°C to 85°C STORAGE TEMPERATURE: -40°C to 85°C TRAVEL: 20 degrees nominal CONTACT ARRANGEMENT: SPST each position
ELECTRICAL RATINGS: Switch: 25mA @ 24VDC; Carry: 100mA @ 50VDC OPERATING LIFE: 2,000 Make-and-Brake Cycles; Each Circuit SWITCH FUNCTION: 2, 4, 6, 8 and 10 Positions CONTACT RESISTANCE: Initial 50mΩ Typical @ 2-4VDC, 100mA INSULATION RESISTANCE: 100MΩ Min. at 500VDC DIELECTRIC STRENGTH: 500V RMS at Sea Level Between Adjacent Terminals OPERATING/STORAGE TEMPERATURE: -40°C to 85°C / MATERIALS / BASE: PPS UL94-V0, Black Finish COVER: PPS UL94-V0, Black Finish ACTUATOR: Nylon UL94-V0, White Finish MOVABLE CONTACT: Copper Alloy, Gold Finish TERMINAL CONTACT: Brass, Gold Finish TAPE SEAL: Mylar, Amber Color / SOLDERING RECOMMENDATION / WAVE: 500°F (260°C) for 5s Max. HAND: 30W Soldering Iron at 608°F (320°C) for 2s Typical *Keep all switches in the “OFF” position during soldering and cleaning process.
ELECTRICAL RATING: Switch: 25mA @ 24VDC; Carry: 100mA @ 50VDC OPERATING LIFE: 2,000 Make-and-Break Cycles, Each Circuit SWITCH FUNCTION: SPST, 2 Thru 12 Positions (Except Position 11) CONTACT RESISTANCE: Initial: 50mΩ Typical @ 2-4VDC, 100mA; After Life: 100mΩ Typical @ 2.4DC, 100mA INSULATION RESISTANCE: 100MΩ Min. @ 500V DC OPERATING FORCE: 1000gf Max. TRAVEL, ACTUATOR: 2.0mm Typical DIELECTRIC STRENGTH: 500V RMS Min. at Sea Level Between Adjacent Terminals OPERATING/STORAGE TEMPERATURE: -40°C to 85°C VIBRATION: To MIL-STD-202F, Method 201 A SHOCK: To MIL-STD-202F, Method 213B, Condition A CAPACITANCE: 5pf Max. Between Adjacent Terminals / SOLDERING RECOMMENDATION / WAVE: 500°F (260°C) for 5s Max. HAND: 30W Soldering Iron at 608°F (320°C) for 2s Typical *Keep all switches in the “OFF” position during soldering and cleaning process.
ELECTRICAL RATING: Switch: 25mA @ 24VDC; Carry: 100mA @ 50VDC OPERATING LIFE: 2,000 Make-and-Break Cycles, Each Circuit CONTACT RESISTANCE: Initial: 50mΩ Typical at 2-4VDC, 100mA; After Life: 100mΩ Typical at 2-4VDC, 100mA INSULATION RESISTANCE: 100MΩ Min. at 500VDC OPERATING FORCE: 1000gf Max. DIELECTRIC STRENGTH: 500V RMS Min. at Sea Level Between Adjacent Terminals TRAVEL: 2.00mm Typical OPERATING/STORAGE TEMPERATURE: -40°C to 85°C VIBRATION: To MIL-STD-202F, Method 201 A SHOCK: To MIL-STD-202F, Method 213B, Condition A CAPACITANCE: 5pf Max. Between Adjacent Terminals SWITCH FUNCTION: SPST, 1 through 12 Positions (Except Position 11) / SOLDERING RECOMMENDATION / WAVE: 500°F (260°C) for 5s Max. HAND: 30W Soldering Iron at 608°F (320°C) for 2s Typical *Keep all switches in the “OFF” position during soldering and cleaning process.

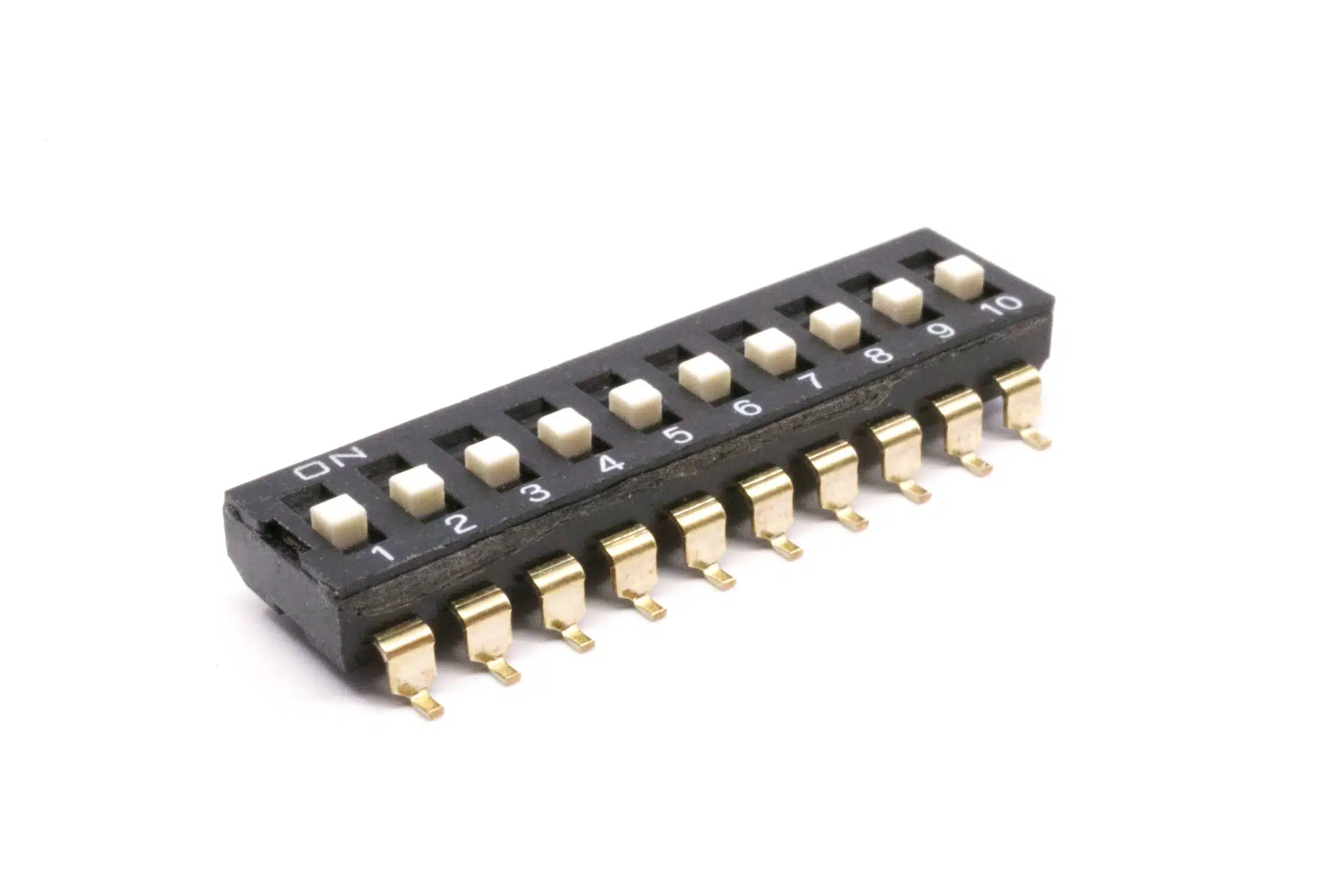

#1. KAG Series
The KAG Series DIP switch, designed for high reliability and versatility, features a low profile, gold contacts and allows for up to 12 positions. The switch also has a top tape seal option with a recessed actuator. Switches are supplied with all poles in the “OFF” position. The KAG Series DIP switch has a Gullwing (SMT) termination option, as well as Tube or Tape & Reel packaging. The contact arrangement is SPDT in each position, and each circuit has a life expectancy of 1,000 cycles. The electrical rating is 100mA @ 50VDC Non-Switching and 25mA @ 24VDC Switching. With its electrical rating, life expectancy and overall dependability, this series is ideal for the following markets:
- Audio/Visual
- Computer Peripherals
- Consumer Electronics
- Instrumentation
- Telecommunication
- Medical Equipment
#2. KAE Series
The KAE Series is a low profile DIP switch measuring 3.05mm x 6.3mm. The actuator on this DIP switch is available as either recessed or extended and offers up to 12 positions, which dictates the length. It features an optional top seal designed to withstand wave soldering and board washing. KAE Series low profile DIP switches are available with both surface mount (gull wing) and through hole (straight or splayed) terminals. You can also choose between tape and reel or tube packaging. These DIP switches operate in temperatures ranging from -20 to 85°C, making them good for applications in harsh environments. The initial electrical rating for these DIP switches, or switch rating, is 25mA of 24VDC, and the carry current, or steady-state current rating is 100mA of 50VDC. Markets for the KAE series DIP switches include:
- Garage door openers
- Test and instrumentation
- Telecommunications
- Controller applications

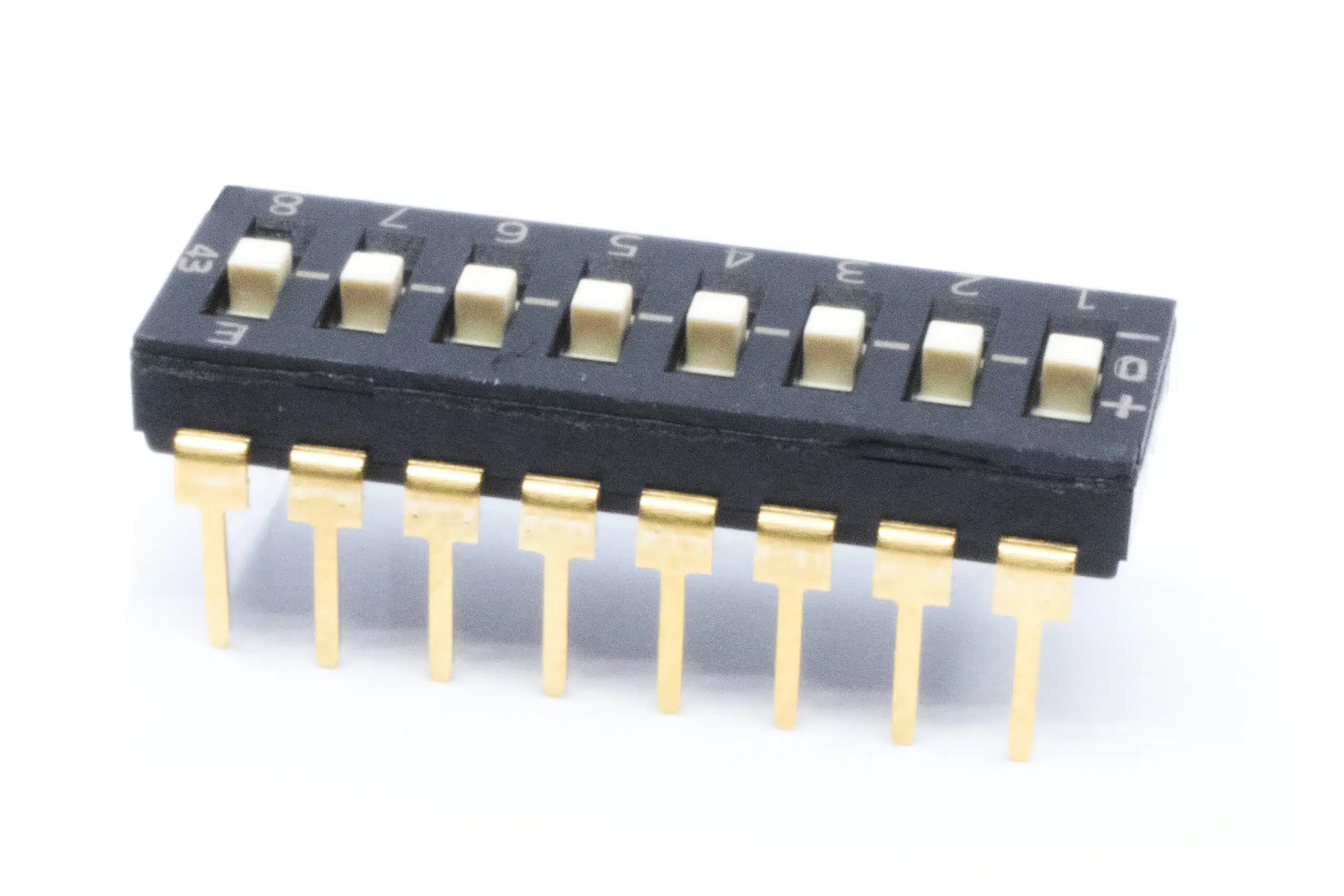

#3. KAD Series
The KAD Series is a tri-state DIP switch. While most DIP switches feature just “ON” and “OFF” functionality with multiple positions, the KAD Series DIP switch is a tri-state switch that features “high output,” “low output” and “high impedance” or “OFF” functionality at multiple positions. This can be useful in situations where multiple devices are connected to the same bus and need to take turns accessing it. KAD Series low-profile DIP switches are available with 4, 5, 8, 9 or 10 positions, with each circuit featuring a life expectancy of 2,000 cycles. Switches are available with straight, through-hole or gull wing termination and are delivered in either tube or tape and reel packaging, An extended or recessed actuator is also available, and a top tape seal for protection from dust and moisture is available with the recessed actuator. Markets and applications for the KAD Series tri-state, low profile DIP switch include:
- Audio/visual
- Computer peripherals
- Consumer electronics
- Instrumentation
- Telecommunications
- Medical equipment
#4. KAC Series
The KAC Series piano DIP switch offers a choice of splayed, through hole PC board pin termination or gull wing, surface mount termination. It comes with a choice of tape and reel packaging or tube packaging. The extended actuator on this piano DIP switch can be placed in two, four, six, eight, or 10 positions. Measuring just 5.0mm high and 6.0mm wide, this is a low profile DIP switch. KAC Series low profile, piano DIP switches have an initial electrical rating of 25mA of 24VDC and a carry, or steady-state rating of 100mA, 50VDC. These DIP switches operate in temperatures ranging from -20 to 85°C, making them great for harsh environments. Possible applications for these low profile DIP switches include:
- Audio/visual
- Computer peripherals
- Consumer electronics
- Instrumentation
- Telecommunications
- Medical equipment
#5. KAN Series
KAN Series half pitch, low profile DIP switches are surface mountable with gull wing terminals and come in tape and reel or tube packaging. With a recessed actuator and at just 1.5mm high and 4.5mm wide, these half pitch, low profile DIP switches fit almost anywhere. The available number of actuator positions include two, four, six, eight, and 10, with the length being dictated by the number of actuator positions chosen. The KAN Series features an optional top seal designed to withstand wave soldering and board washing. It operates in temperatures ranging from -40 to 85°C, making this switch suitable for applications in harsh environments. The initial switching current rating for this DIP switch is 25mA of 24VDC, and the carry current, or steady-state current rating is 100mA or 50VDC. Uses for this half pitch DIP switch include:
- Garage door openers
- Test and instrumentation
- Telecommunications
- Controller applications
#6. KAP Series
KAP Series piano DIP switches employ a reliable wiping contact mechanism that ensures stable contact at low resistance. They are PC board mountable with through hole termination and come with either extended or recessed actuators with two to 12 actuator positions from which to choose. This includes a choice of top-side “OFF” or top-side “ON” configurations. The KAP Series piano DIP switch features an optional top seal designed to withstand wave soldering and board washing. The gold-plated contacts on this piano DIP switch have an initial, or switch electrical rating of 25mA of 24VDC. The carry rating, or steady-state current rating is 100mA of 50VDC. Applications for these piano DIP switches include:
- Garage door openers
- Test & instrumentation
- Telecommunications
- Controller applications
#7. KAS Series
KAS Series slide DIP switches are available with vertical PC board pin or right angle PC board pin termination. Available with between 1 and 12 actuator positions, and with extended or recessed actuators, these slide DIP switches arrive in tube packaging. The KAS Series slide DIP switch features an optional top seal designed to withstand wave soldering and board washing. The contacts have an initial electrical rating of 25mA, 24VDC and a carry current rating of 100mA, 50VDC. This switch operates in temperatures ranging from -40 to 85°C, making it ideal for harsh environments. PLEASE NOTE: The right angle PC pin termination option is not available with the recessed actuator; it’s only available with the extended actuator. Applications for these slide DIP switches include:
- Garage door openers
- Computer peripherals
- Consumer electronics
- Instrumentation
- Telecommunication
- Medical equipment
